Our client, an expert Saxophone player, needed to reduce the 110db noise produced by his Sax. LaneRow designed the structure and the acoustic internal layup to give 4 layers of different acoustic insulation. The structural build took 3days to get to water tight structure and then the technical job of fitting the sound layers could begin. The last two layers had to be glued as not to break the continuous internal ”skin”. The building was then larch clad and fitted with double glazed Alu windows and doors.

Wall cross section, from left to right. Larch cladding-25mm batten-100mm SIPs-25mm batten with acoustic wool ‘infill’-19mm acoustic sound board-10mm sound mat-acoustic plaster board.



LaneRow garden room design model for our client after our first site meeting

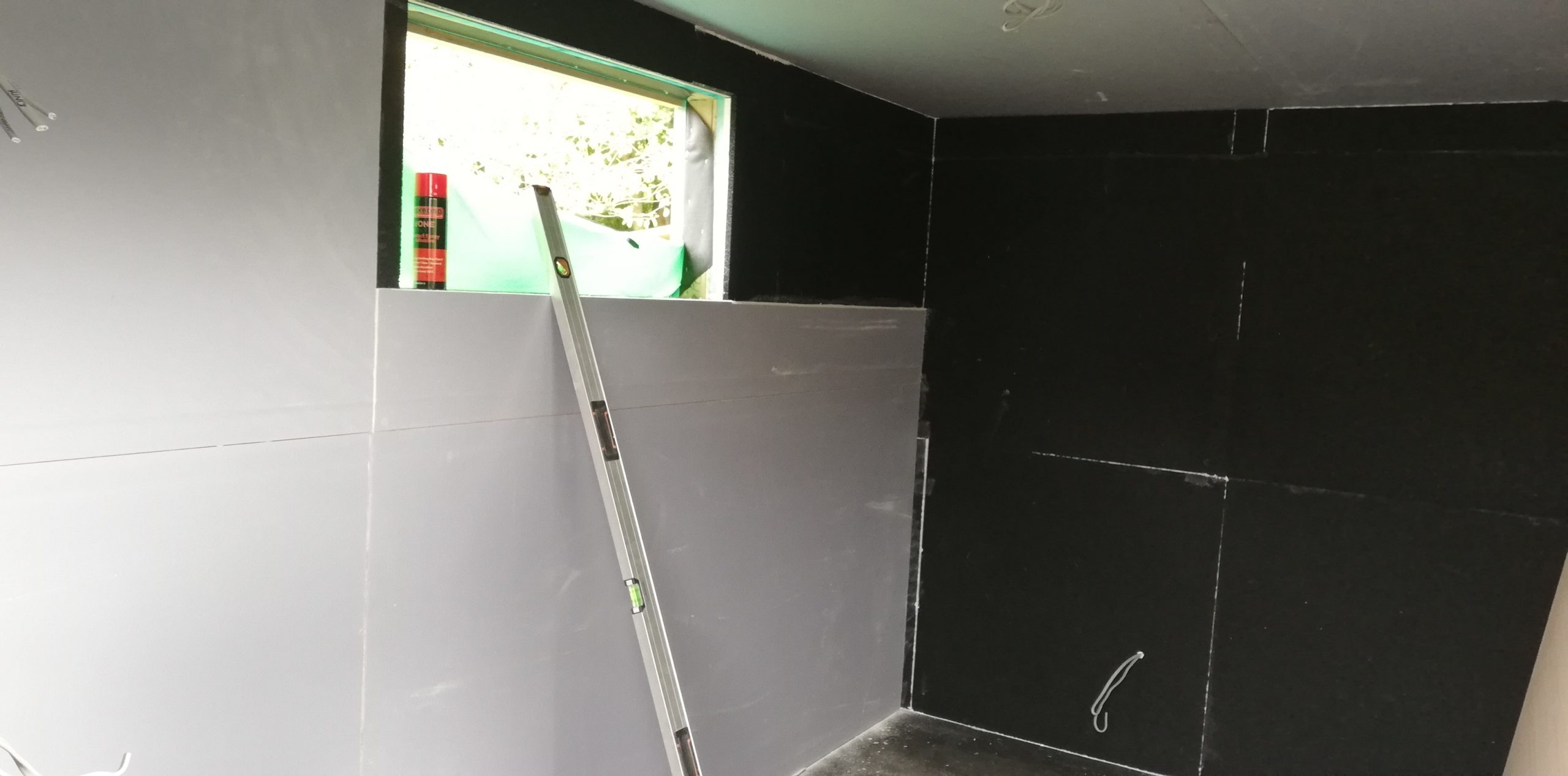

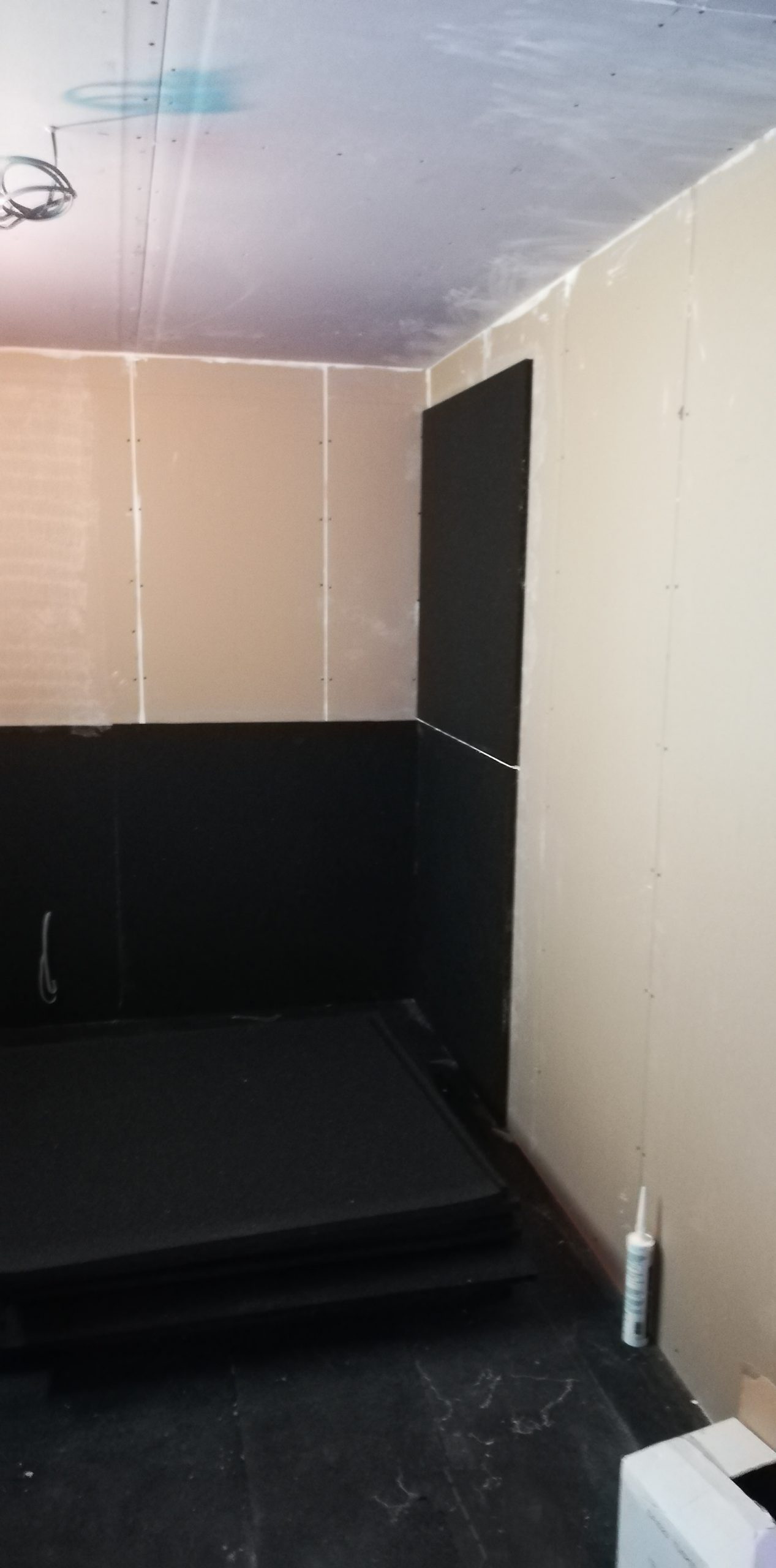

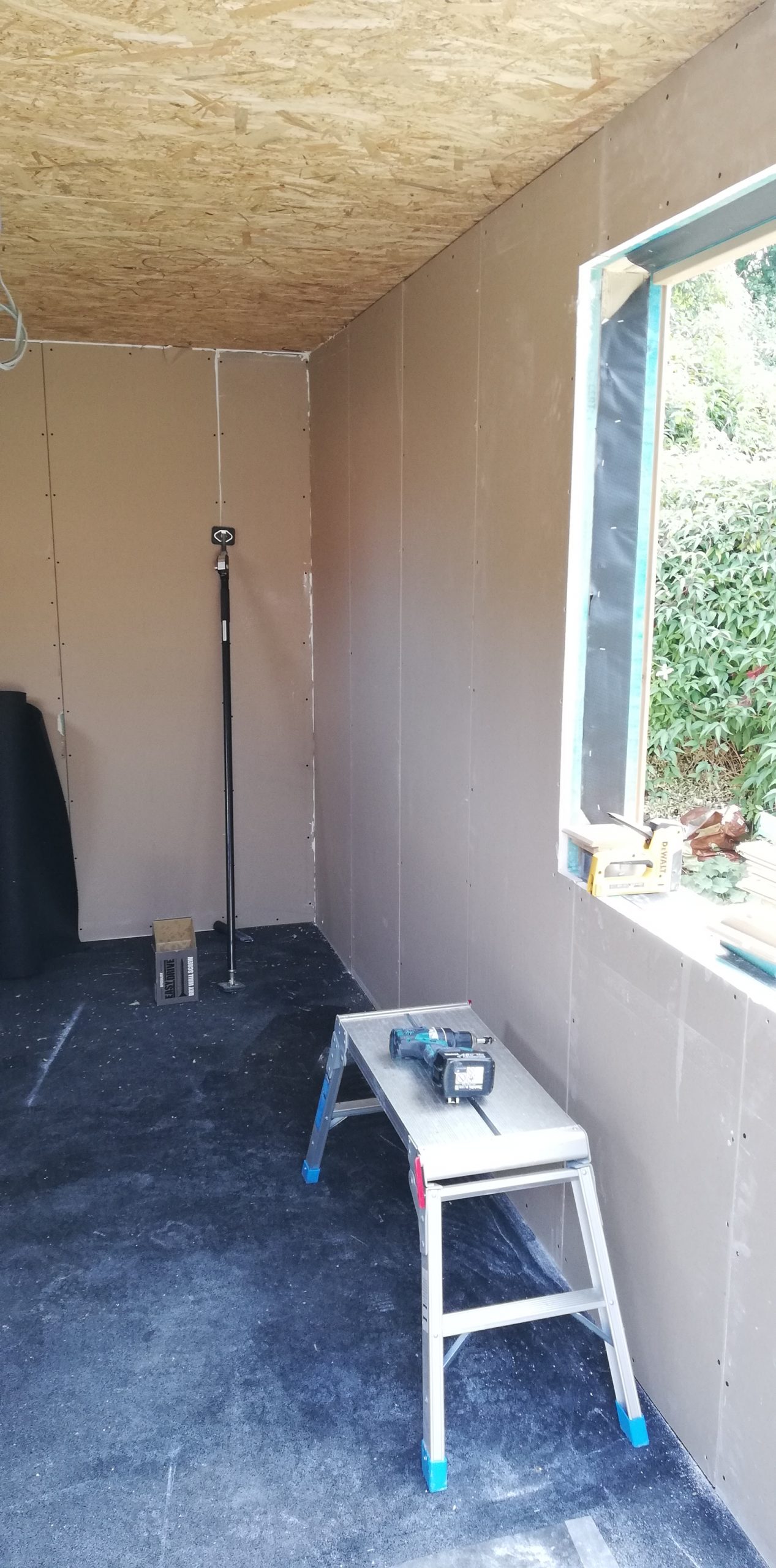

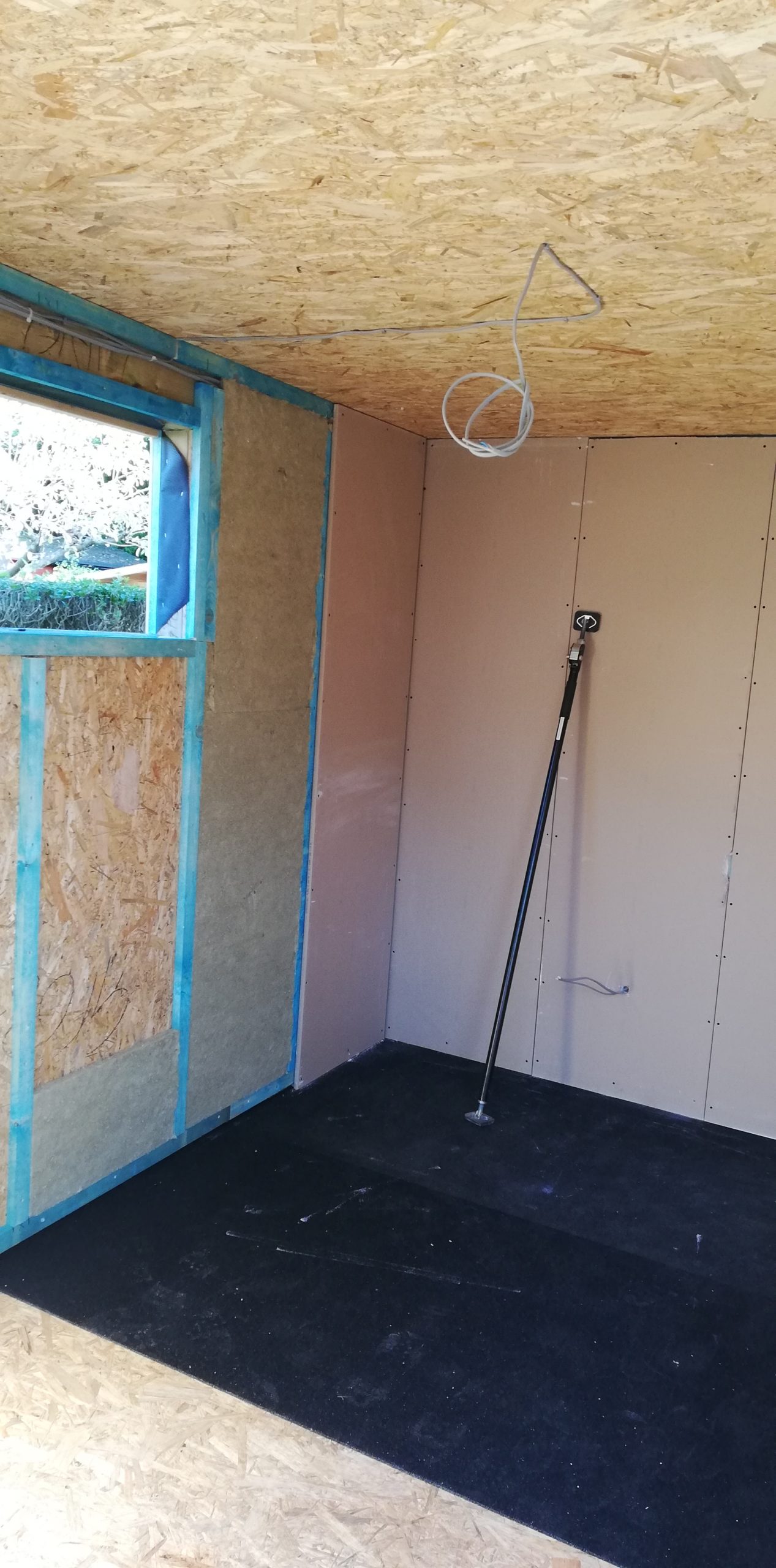

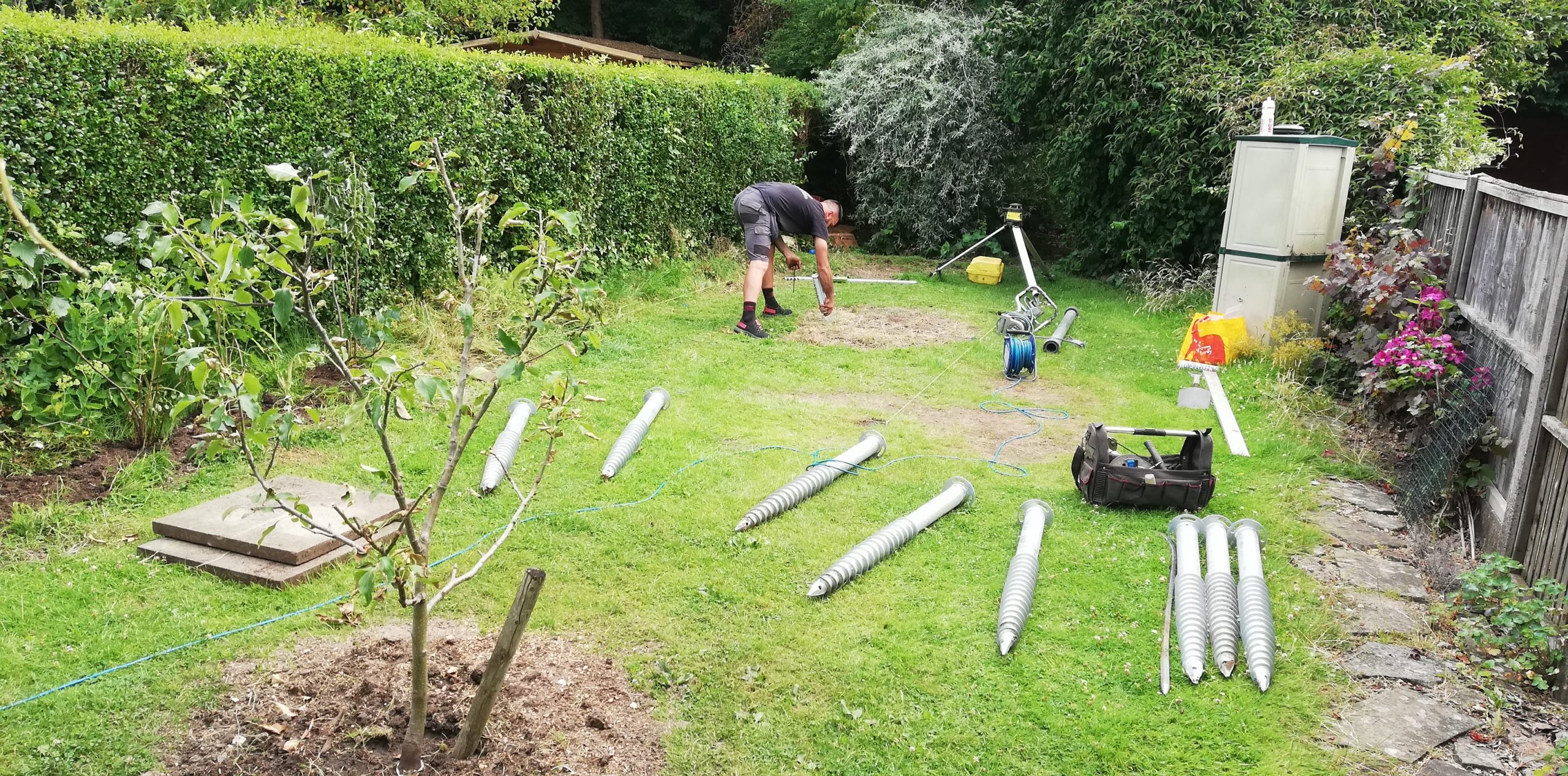

Please see the below images of the complete build.
